Innohome EVO Stove Guard

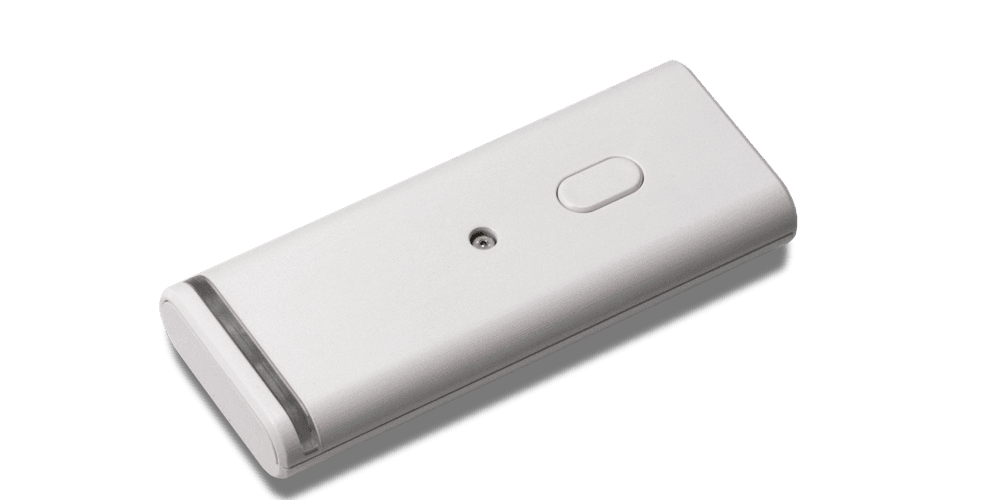

Sensor Unit
The Sensor Unit monitors the temperatures above the cooktop and alerts the users to potential fire hazards using both light and sound signals. If the situation does not improve, the unit triggers an alarm and sends a signal to the Control Unit, which then cuts off the power supply to the cooktop.
The heat sensor (Sensor Unit) is supplied with two different mounting brackets, both included in the sales package:
- One bracket is designed for installation on a cooker hood or ceiling
- The other is intended for wall mounting.
Both brackets feature strong adhesive tape for easy attachment to the cooker hood, ceiling, or wall surface. Additionally, the brackets include screw holes for optional screw mounting.

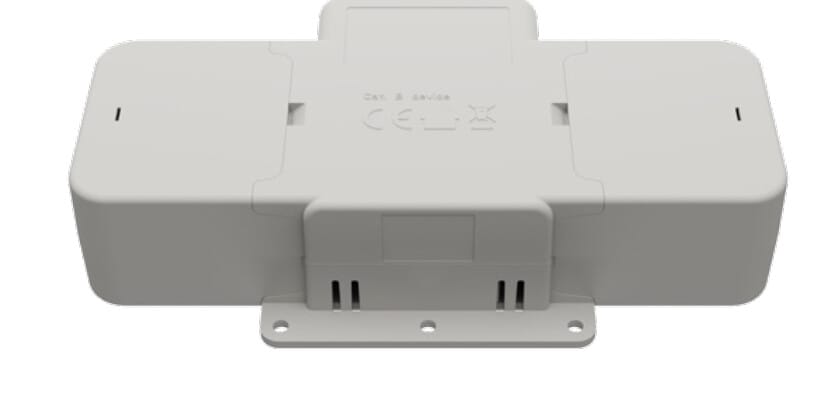

Control Unit
The Control Unit is typically installed by a qualified electrician. However, for certain markets, models equipped with a Perilex plug are available, allowing plug & play –installation option.
The Control Unit is connected to the cooktop’s power supply and is usually installed behind the appliance, in the plinth space, or inside a kitchen cabinet. It is not visible to the user during normal operation.
When the Sensor Unit detects a fire hazard, it sends a signal to the Control Unit, which then cuts off the power supply to the cooktop to prevent further danger.
Innohome Stove Guard SGK5010
Heat Sensor
The Heat Sensor is installed under a cooker hood with self-adhesive installation plate.
It does not require wiring, nor additional power supply. The Heat Sensor can also be mounted on the wall or ceiling with a separate mounting bracket.
Control Unit
The Control Unit is installed behind the cooker by an authorized electrician. The Control Unit will switch off the cooker when The Stove Guard detects a hazardous situation.
Frequently Asked Questions
The Control Unit can be installed by an authorized electrician only.
Replacing/installing the Heat Sensor does not require an electrician.
There are two ways:
- The sensitivity is set during installation according to the mounting height.
Make sure that the Heat Sensor is firmly attached to the installation plate.The Control Units overheating protection switches the stoves power off if the Unit is too close to a cooker or other heat source. The cooker can be switched on again by turning off the power supply for a few seconds using the cooker fuse (in the consumer unit). If the overheating protection fails again, move the Control Unit to a cooler or better ventilated place.
The cooker is too hot for the power to be turned back on. Set controls to ”0”. Wait until the cooker has cooled down and the ringing sound is heard with 5-second intervals. Press the Heat Sensor button once to reconnect the cooker.
The sound is indicating an auto-diagnostics alarm which most cases can be returned to normal by pressing the Heat Sensors button once.
Removing the Heat Sensor from the installation plate gives an alarm (4 beeps) and cuts off the power to the cooker.
