Innohome SSA

Prevents electrical fires, instead of just alarming about them

Why install a device that only gives out an alarm when smoke is present in the room.
Innohome SSA is a smoke alarm with a power safety cut-off function which prevents the electrical fire before it even starts.

Homes are equipped with all kinds of electrical devices which can start a fire.
Innohome SSA detects a device causing smoke and cuts the electricity to it and this way prevents the fire before flames occur or smoke causes significant harm to the home.

Innohome SSA is a praised and an internationally awarded Finnish innovation, which prevents electrical fires already when smoke appears. The reaction caused by smoke is the release of the residual-current device, which cuts off the electrical current and therefore prevents the electrical fire from starting.

Typical for electric fires is that the defected device generates smoke several minutes before the fire properly ignites. Innohome SSA prevents electric fire before flames appear and stops toxic gases from forming.

Mains powered fire alarms are recommended in many countries and mandatory for example for new homes in Finland. A basic smoke- or fire alarm is not of much use if no one is present to hear it or can do anything about the fire. Innohome SSA gives out an alarm of the danger but also prevents the flames by cutting off electricity to the smoking device.

Innohome SSA

Innohome SSA is a smoke alarm with safety power cut-off function.

Alarm unit type

Optical

Loud alarm signal

85 dB

Voltage

230 VAC, 50 Hz

Consumption in standby mode

Max. 5mA

Consumption when alarming

max. 50mA

Storage temperature

-25 - +60 C

Operating temperature

+5 - +40 C

Product dimensions (diameter)

122 mm (142 mm with mounting plate)

Product dimensions (height)

46 mm (alarm unit 41 mm + mounting plate 5 mm)

Standard wiring

3 x 1,5 – 2,5 mm2

Installation

Installation and system design can be done only by professionals. Please contact us for more information. Consumers are not allowed to install the product individually.

Innohome SSA is compatible with all houses but requires wiring.

NOTE: Some installation positions include parts that are purchased separately. Ask from your dealer.

Use

Innohome SSA brings fire safety to homes and holiday houses.
Each space, where electrical devices are being used is in the danger of suffering an electrical fire. Typical devices causing electrical fires at homes are stoves, lighting, washing machines and dryers, dishwashers, chargers and small kitchen appliances.

FUNCTIONALITY:

  • Alarms when it detects smoke.
  • Creates a residual fault current load from alarm signal.
  • Cuts off electricity from the faulty device connected to the residual current device before flames. Thus stopping the formation of toxic gases.
  • Electricity is quickly turned on again by lifting the fault current protections switch back up.
  • Ready to use straight after installation – No action from user needed.
  • Can be interlinked with other Innohome SSA -devices.
  • Simple and cost-effective way of preventing electrical fires, and the damages caused by smoke and flames.

Find reseller

Innohome SSA resellers are extending all the time. Find the closest reseller from our Sales & Installation-page.

Find reseller

Find installer

Innohome SSA can be installed by any professional electrical installer.  We have also collected a list of installers who are familiar with the product and have installed them before.

Find installer

Innohome Stove Guard SGK5010

The easy and effective way to reduce house fires

Internationally acclaimed Innohome Stove Guard SGK5010 reacts to a danger situation earlier than any other safety device without causing nuisance false alarms. Innohome Stove Guard SGK5010 is compatible with all electric cookers.

Almost all house fires could be prevented with a Innohome Stove Guard SGK5010. Every day multiple kitchen fires require the fire departments to come extinguish them. Many more fires are put out by the occupants themselves. Even the smallest fires cause at least nuisance of smoke, not to mention the fatal ones destroying the lives of many. Keep your family, home and property safe with a Innohome Stove Guard SGK5010.

There are over 400.000 Innohome Stove Guards installed to protect kitchens around the world.  They have also been the first ones fulfilling the requirements of the European stoveguard standard EN 50615. Innohome Stove Guard SGK5010 is the current model from Innohome.

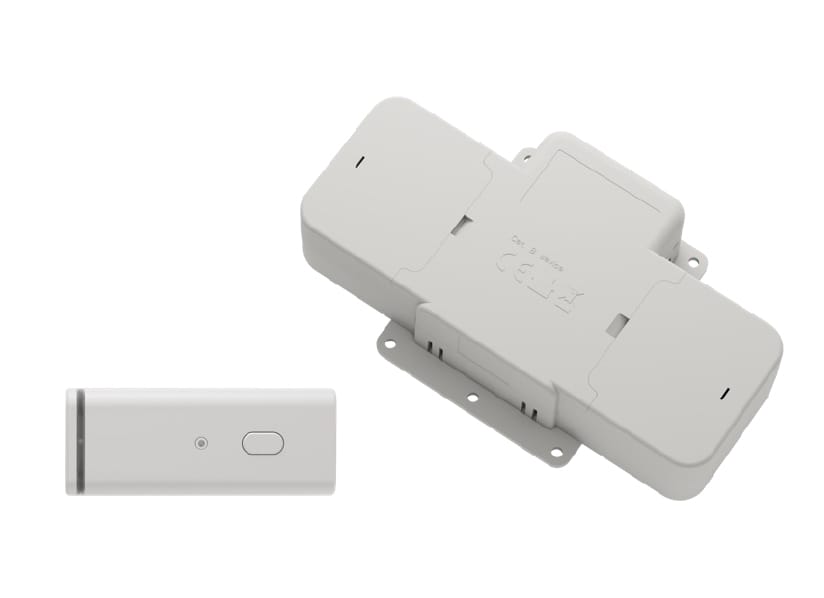

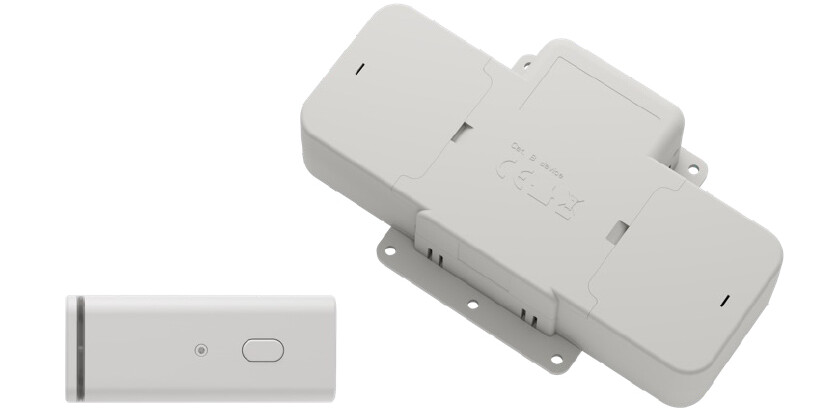

Innohome Stove Guard SGK5010

Innohome Stove Guard adapts to different cooking styles. The heat sensor’s sleek design fits well to it’s surroundings whether located on the cooker hood, wall or ceiling.

80 dB(A)

maximum alarm signal (1m)

<1 W

extremely low energy use

Tested

for electrical safety

Wireless communication

Short Range device

Factory paired

Ready to use

230 VAC

voltage

Automatic

fault diagnosis

Flame retardant

and high heat resistant plastics

130 x 130 x 30 mm

control unit dimensions (l x w x h)

90 x 37 x 13 mm

heat sensor dimensions (l x w x h)

Patented technology

EN 50615

Fulfils the European Stove Guard standard requirements.

Installation

Innohome Stove Guard SGK5010 comes with comprehensive and easy installation options.
The product consists of a heat sensor, a control unit and an installation kit. Depending on the location it can be a plug-and-play version or easily installed by an installer.

Stove Guard’s intelligent and wireless heat sensor is attached underneath the cooker hood with adhesive and uses a button cell for power. The heat sensor can also be installed on the wall or the ceiling. The control unit is connected to the power supply of the cooker and installed out of sight.

Installation can be done only by the professional installer (other than plug&play -version’s). Usually the installation takes around 1 hour of time. Please contact your local installer and agree about the installation. Consumers are not allowed to install the product individually.

Innohome Stove Guard SGK5010 is compatible with all electric cookers.

NOTE: Some installation positions include parts that are purchased separately. Ask from your dealer.

Use

Innohome Stove Guard SGK5010 is easy to use. The product measures the temperature from the stove and gives a pre-alarm in case of a potentially dangerous situation. If the warning is not acknowledged, the Innohome Stove Guard SGK5010 alarms and cuts off the power to the cooker. When the cooker has cooled down to a safe temperature, it is ready to be used again.

The device works silently in the background and can also be used easily by special user groups. It adjusts its sensitivity level based on the kitchen and user’s cooking styles, so that false alarms do not disturb the cooking.

It acts before flames appear. Normal smoke and fire detectors are not recommended to be used in the kitchen. They are only able to alarm the user, not to prevent a fire and would often give false alarms because of cooking fumes. Innohome Stove Guard SGK5010 acts before flames are formed and prevents fires also when you are not present or are otherwise unable to switch the power off.

Download user manualDownload datasheet

Kitchen safety to elderly

Read more

Fire safety for high-rise buildings

Read more

Fire prevention to property owners

Read more

Distributors and dealers

Innohome Stove Guard SGK5010 resellers are extending all the time. Find the latest information from our Distributors-page.

Find distributors and dealers

Installers

Innohome Stove Guard SGK5010 installers are extending all the time. Find the latest information from here.

Find an installer

Innohome Stove Alarm SGS1010

Improve your kitchen's fire safety

Innohome Stove Guard SGK5010 consists of the control unit and the intelligent heat sensor. Innohome Stove Alarm SGS1010 is the heat sensor unit and sold as a separate product and described in this page.

Every day multiple kitchen fires require the fire departments to come extinguish them. Many more fires are put out by the occupants themselves. Even the smallest fires cause at least nuisance of smoke, not to mention the fatal ones destroying the lives of many. Keep your family, home and property safe with Innohome Stove Alarm SGS1010.

The Stove Alarm alerts of a hazard in the kitchen even before toxic gases are produced and a fire starts. It predicts a potential cooking fire hazard before normal fire alarms do and sounds out a warning alarm, so the person cooking can take action.

The Stove Alarm’s self-learning technology learns its sensitivity based on the user’s cooking habits, ensuring accurate hazard recognition and uninterrupted cooking.

Innohome Stove Alarm SGS1010 is compatible with all electric cookers.

Innohome Stove Alarm SG1010

Product dimensions

90 x 37 x 13 mm

80 dB(A)

maximum alarm signal (1m)

Low energy consumption

Long battery-life

Replaceable battery

CR2032

Battery low

warning

Heat alarm

Alarms when temperature is too high

Dislocation alarm

Alerts if removed from place

Sensitivity

easily set

Installation

The Stove Alarm is very easy to install. No tools are needed for installation. Plug-and-play and you are ready to go. Simply attach the Stove Alarm to the cooker hood with the strong adhesive on the mounting plate.

The product has a long-life battery which is easy to replace.

Innohome Stove Alarm SGS1010 is compatible with all electric cookers.

Did you know that fire alarms are not recommended to be used in kitchens?

They are too sensitive to cooking fumes and alarm when no danger is apparent.

Stove Alarm reacts to heat.

And adjusts sensitivity based on user's cooking habits.

Use

Innohome Stove Alarm SGS1010 is easy to use. The product measures the temperature from the stove and gives a pre-alarm in case of a potentially dangerous situation.

The device works silently in the background and can also be used easily by special user groups. It adjusts its sensitivity level based on the kitchen and user’s cooking styles, so that false alarms do not disturb the cooking.

Dowload user manual

Learn also about the advanced fire prevention with a Stove Guard.


Innohome Charlie

Reliable and easy charging

Innohome Charlie is an electric vehicle charging station product family for electric and hybrid vehicles. It is a device for charging mode 3 which is the recommended method for everyday charging .

There are three versions of Charlie: Charlie-3 and Charlie-1 both have a type 2 charging socket, which is compatible with all electric and hybrid vehicles in Europe (type-2). Charlie-C has a fixed 4,8 meter type 2 charging cable attached to it.

The stylish Scandinavian design fits nicely in all kinds of surroundings. Separately sold Innohome Charlie Hood gives extra weather protection as well as improves the simple and stylish look even further. Innohome Charlie products are designed and manufactured in Finland.

Innohome Charlie-1

Innohome Charlie-1 is a safe and perfect electric vehicle charging station for those who need to charge their vehicles home with 1-phase charging in mode 3. Innohome Charlie-1 has been designed for arctic conditions and it is made in Finland. The product is very convenient to install and use. Because of its smooth Scandinavian design it fits well in various surroundings. LED-lights shows clearly the status of the charging and when the charging has been done.

1x32A

1-phase version

32A

maximum charging current

7,4kW

power

Guaranteed quality

tested by a third party

6mA DC

built-in current monitor

Always ready

just plug in the cable

IP44

casing

Type 2

charging socket

Mode 3

IEC 61851-1

CE

certified

Made in FIN

Designed & manufactured

305x219x160 mm

Dimensions (h x w x d)

Innohome Charlie-3

Innohome Charlie-3 is a safe and perfect electric vehicle charging station for those who need to charge their vehicles home with 3-phase charging in mode 3. Innohome Charlie-3 has been designed for arctic conditions and it is made in Finland. The product is very convenient to install and use. Because of its smooth Scandinavian design it fits well in various surroundings. LED-lights shows clearly the status of the charging and when the charging has been done.

3 x 32 A

3-phase version

32A

maximum charging current

22 kW

Max. power

Guaranteed quality

tested by a third party

6mA DC

built-in current monitor

Always ready

just plug in the cable

IP44

casing

Type 2

charging socket

Mode 3

IEC 61851-1

CE

certified

Made in FIN

Designed & manufactured

305x219x160 mm

Dimensions (h x W x d)

Load balancing

Connect up to 3 client units

8A

An external input to limit charging current to 8A

Innohome Charlie-C

Innohome Charlie-C is a good choice for those who want the charging cable to be easily available. The 4,8 meter long cable folds neatly on the wall with the cable holder included in the package. Innohome Charlie-C has been designed for arctic conditions and it is made in Finland. The product is very convenient to install and use. Because of its smooth Scandinavian design it fits well in various surroundings. LED-lights shows clearly the status of the charging and when the charging has been done.

3 x 32 A

3-phase version

10 - 32A

adjustable charging current

2,3 - 22 kW

adjustable power

Guaranteed quality

tested by a third party*

Charging cable

4,8 m Type 2

6mA DC

built-in current monitor (IEC 62955)

Always ready

just plug in the cable

IP44

casing

Mode 3

IEC 61851-1

CE

certified

Made in FIN

Designed & manufactured

305x219x93 mm

Dimensions (h x W x d)

Load balancing

Connect up to 3 client units

8A

An external input to limit charging current to 8A

*Tested model is Charlie-3, which is technologically identical to Charlie-C

Installation

Charlie’s easy installability was one of the main features already in the design stage. It’s structure together with clear installation instructions make the installation very quick. With easy-to-use DIP switches the installer can easily configure the charging current to be optimal for the location.

Installation can be done only by the professional installer. The installation time depends on the location (wiring needs, distribution box requirements etc.). Please contact your local installer and agree about the installation.

Innohome Charlie-3 and Charlie-C: These versions allow load balancing for up to 3 client units. There is also an input for external potential free on/off control.

Use

Plug in and charge. As simple as that. And that’s all you need to concern yourself with. The Led indicators will let you know when the battery is fully charged.

The basic outdoor sockets are not designed for electric or hybrid vehicle charging and can be unsafe to use for that purpose. Caution! There is a potential risk for fire if the car is continuously charged with basic outdoor socket. Charging from a normal outdoor socket is also a lot slower than from a charging station.

With Innohome Charlie products the charging is safe. You can leave your vehicle to charge overnight without worries.
Innohome Charlie has 32A maximum charging current which ensures 22 kW power. Usually a 11 kW or slightly lower than that charging power is best for the car and the house.

TIP: We listed reasons to use professional charging unit instead of charging your vehicle from a basic outdoor socket.

Open user manual

Did you know that charging from a standard socket is not recommended.

Distributors and dealers near you

Innohome Charlie charging station resellers are extending all the time. Find the latest information from our Distributors-page.

Find a distributorFind a dealer

Find installer

Innohome Charlie charging station installers are extending all the time. Find the latest information from here.

Find installer
